Friday 17 August 2018

Solid Conservatory Roof Conversion

Our conservatory has been a great asset for the last 15 years, but there were one or two issues we needed to address.

In addition, the crazy high temperatures during this summer have made it a no-go area during the hottest hours of the day.

So a couple of months ago we started thinking about refurbishment options.

Our conservatory was originally supplied with a polycarbonate roof with an opening roof window. For most of the summer we can keep the room cool enough by opening all the windows & doors, and running a ceiling fan.

But if the room is shut up while we are out, temperatures well over 40'C are common place at the coolest end of the room where our max/min thermometer sits in the shade. However, this summer, with days and days of outside temperatures in the 30s, even with the conservatory 'fully-open' it was too hot to use.

country view guardian conservatory tiled roof solid conversion

I started to think about ways to keep it cool and came across several companies selling roof modifications. Some were simple, while others involved completely removing the original roof and fitting a new solid one  ...which I decided was way beyond my DIY abilities.

After days of research I shortlisted just 2 suppliers:-

  • IconRoofs: this is a roofing company that fit a new roof in much the same way as for any house extension. They make a timber roof structure, fit insulation and use plastic tiles to keep the weight down.
  • Country View: these people use the Guardian system, which is an upgraded aluminium frame, boarded with ply, insulated and topped with thin, light-weight metal slates.
Having spoken to both companies, I felt that either one could provide an acceptable solution. However, we chose Country View as they provided the lowest quote.

why would you want to do this?

This is a relatively expensive modification. For a 5m x 3m conservatory with a double hipped roof, the cost is the wrong side of £10k. But our conservatory is our #1 daytime room for most of the year. In the winter we still use it, but may have to run the electric heater for an hour or so first to pre-heat the room. If its really cold and there is no sunshine, we have to run 2 heaters at full blast!

The main benefits of fitting a well insulated solid roof include;

  • its cooler in the summer and warmer (easier to heat) in the winter. Or put another way; it makes it a more comfortable room to use throughout the year.
  • Noise reduction when its raining is another reason that it promoted, although we often rely on the polycarb roof to act like a rain alarm (i.e. it warns us to bring the washing in from the line!). However, if it also reduces traffic noise, that has to be a benefit.
  • UV light damages furniture and other furnishings (e.g. tables, chairs, carpets). With a solid roof, sunlight is dramatically reduced in the summer as the sun is higher in the sky and only enters part of the room via the windows. During the winter (when the sun is lower in the sky) the sun is less powerful.
  • Electronic devices; with light coming at you from all directions, it can be difficult to see the screen clearly on phones, computers & TVs. Cutting out overhead light results in a big improvement.
  • The spider problem; you wont find this one in the brochures. All sorts of flying critters (e.g. flies, wasps, bees, moths, butterflies & so on) find their way into a conservatory, realise they are in the wrong place, and then fly up high towards the light in a futile attempt to escape. This becomes a rich hunting ground for spiders who hide in the nooks & crannies in the roof and rapidly multiply.

country view guardian conservatory tiled roof solid conversion

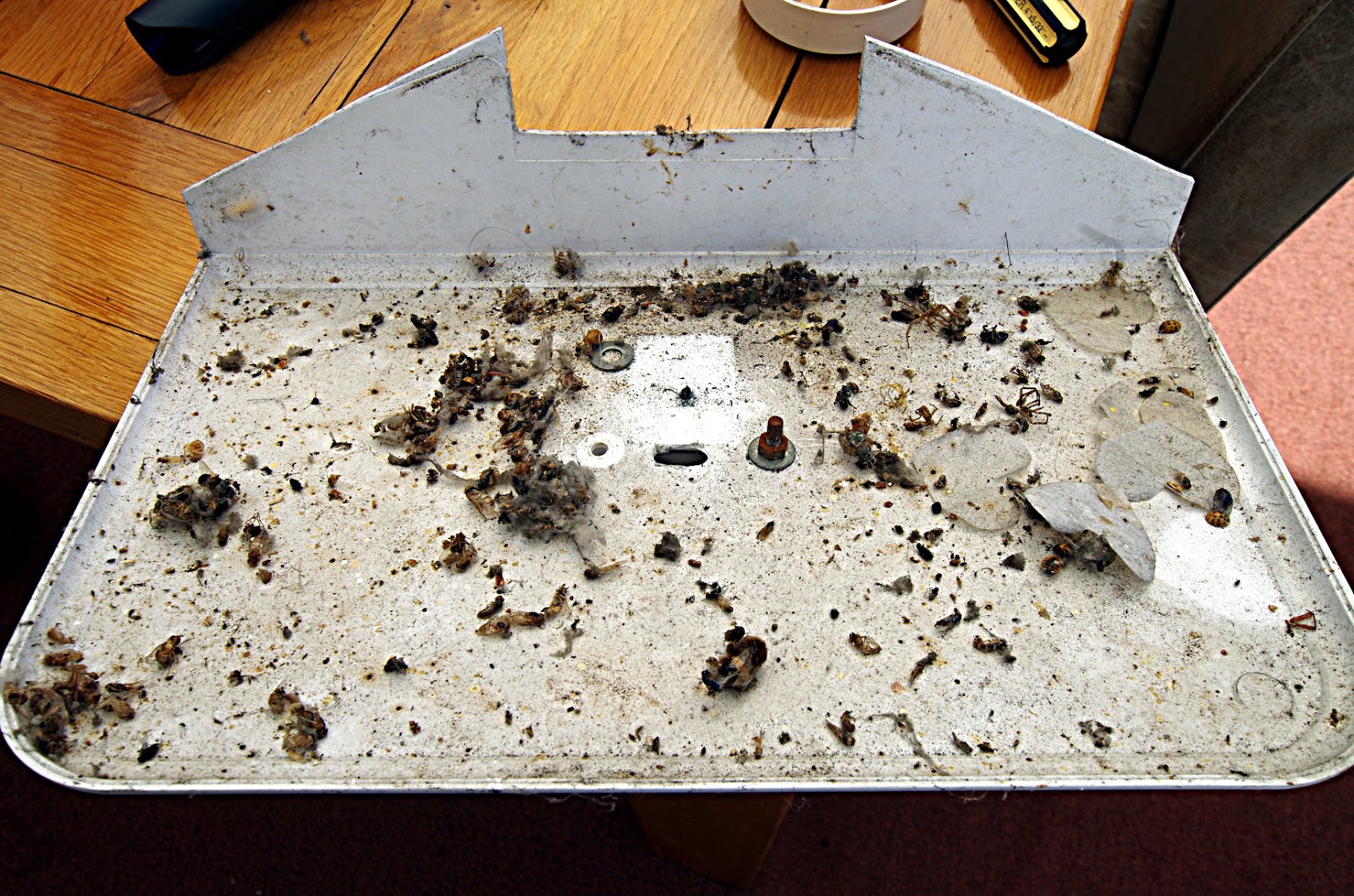

the contents of just one small cover from the inside of the roof of our conservatory

One of the most successful is the noble false widow spider which has a rather unpleasant venom. With a proper plastered ceiling there are fewer places for these pesky spiders to hide, and less bug-traps. So I hope we won't continue to get insect carcasses and live spiders dropping onto the dining table while we are having lunch!

There are other benefits to us in replacing the roof;

  • Keeping the roof clean is a real pain, and some of the polycarb panels are going brown (apparently this is what happens if they are put in the wrong way up!)
  • After 15 years of use, the rubber seals on the gutters have perished and cannot be replaced (its a supply problem). We have tried to repair these by gluing up the joints, but the climatic temperature range causes expansion/contraction and the joints break. The new roof comes with a new gutter.
  • The original box gutter between house and conservatory is sometimes overwhelmed by rain water coming off the main roof, in addition to the water from the conservatory roof. The new box gutter has a cross-sectional area that is about 70% greater, so this should be much less of an issue.

country view guardian conservatory tiled roof solid conversion
water has been running down the cables and collecting in the switch box

the installation process

During the 6 weeks lead time between placing the order and installation, a surveyor takes careful measurements of roof angle and various linear measurements of the conservatory. This data is used to manufacture the new aluminium frame at the Guardian factory in Portsmouth. He also needs to satisfy himself that the existing foundations are deep enough, and generally has to dig a test pit to verify this.

I did some simple preparation before the 2 installers arrived, including clearing the room of furniture, isolating the lighting and power circuits, disconnecting and unbolting the wall heater, removing the ceiling lights & fan, and moving clutter away from the exterior walls, including a water-butt & assorted pot plants.

I decided not to pay for an electrician to install ceiling lights. Initially I was going to do this myself, but eventually decided not to bother at all. We very rarely used the original ceiling lights, so I'll just fit a single wall light and mostly make use of a 6ft floor standing up-lighter and other 'mood' lights.

Within about 45 minutes of arriving, Sam & Wayne had removed the old roof...

country view guardian conservatory tiled roof solid conversion

...and they soon assembled the new frame...

country view guardian conservatory tiled roof solid conversion

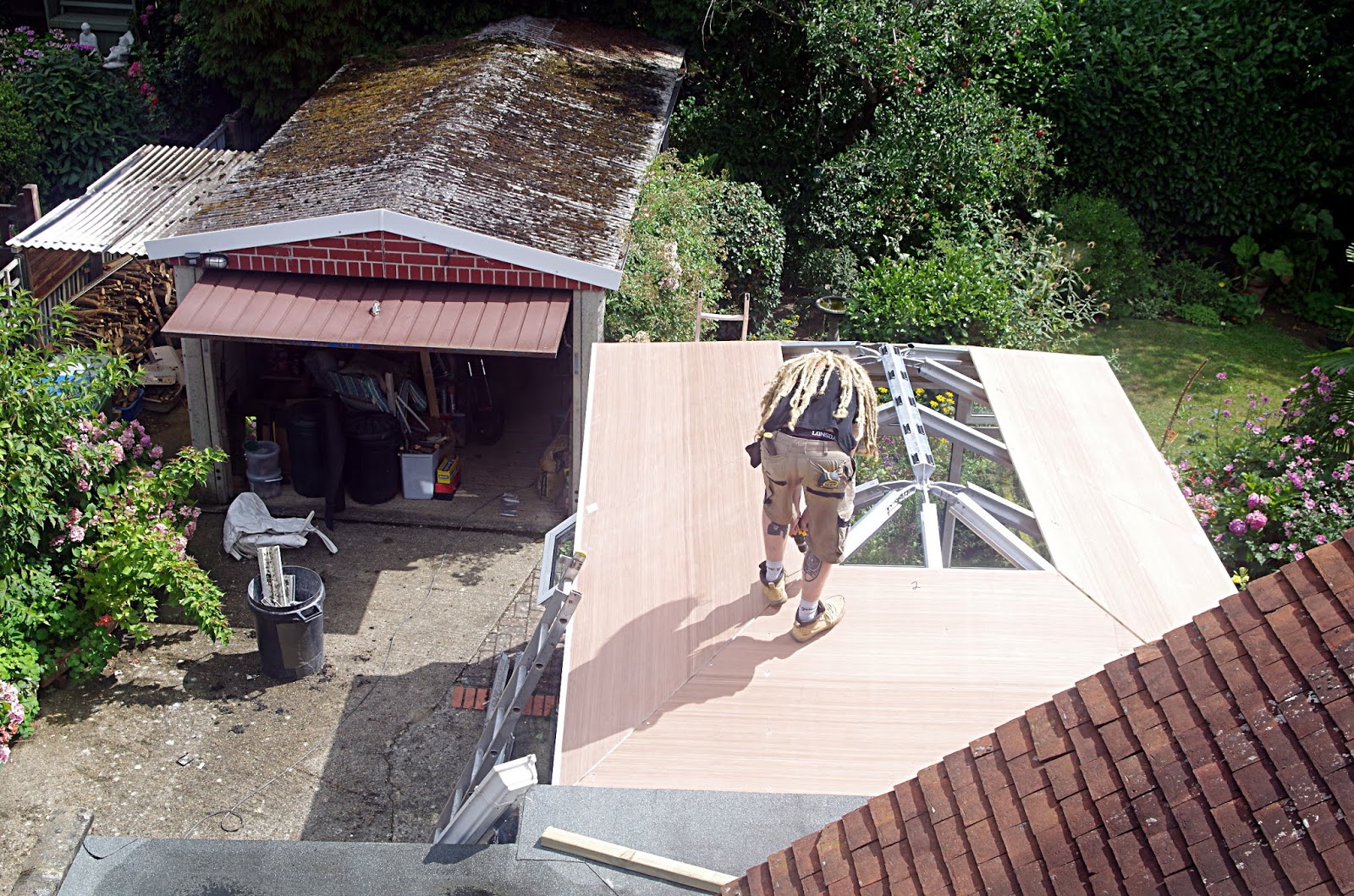

..then boarded it...

country view guardian conservatory tiled roof solid conversion

...and then covered it...

country view guardian conservatory tiled roof solid conversion

So by the end of day #1 we had a cosy rain-proof roof.

country view guardian conservatory tiled roof solid conversion

Progress on day #2 was less successful, as the installers had not been provided with enough materials. However, they part-laid the slates which gave us a good idea how a charcoal grey roof would look when finished.

country view guardian conservatory tiled roof solid conversion

By the end of day #3 we had a completed roof...

country view guardian conservatory tiled roof solid conversion

..and just needed guttering, a final 80mm layer of insulated plaster board, and a plasterer to finish off the installation.

country view guardian conservatory tiled roof solid conversion

Installation was completed on day #4 and by lunchtime Friday (day #5) Lee & Dave had fully plastered the ceiling to a very high standard.

country view guardian conservatory tiled roof solid conversion

All timescales, including the lead time, appear to have been conservative (which is a good thing).

a few more considerations

This sort of modification comes under Building Regulations control. The Guardian system meets these requirements via LABC certification. I understand that IconRoofs use LBC on a per installation basis, so there is an on-cost of £300-£400 to cover this.

Many of the lower cost solutions do not comply with regulations, and may create problems associated with condensation.

Planning Permission may be required if the local authorities deem this modification changes the building from a conservatory to some other form of house extension.

Some people apparently remove the back door connecting the house to the conservatory, and even plumb conservatory radiators into their existing heating system. But by definition, a conservatory must be thermally isolated from the house, otherwise it is considered to be a house extension.

Another consideration is security. It may only take minutes to remove an externally glazed panel (as typically installed to a conservatory) from a window or door.

the verdict

It is going to take a while to determine whether our modified conservatory lives up to expectations, but it certainly looks great!

It has definitely reduced much of the high frequency content from traffic noise, but obviously the low frequency rumble remains. We also seem to get a clearer view of the garden as there are fewer reflections on the glass, without light coming in from above.

The next stage is to paint the ceiling, lay a wood-laminate floor and replace/renew the skirting boards.

We also plan to fit a Velux Sun Tube into our kitchen roof/ceiling to raise the light level. Something we should have done years ago!
